CPAP Mask Pressure Monitoring & Alert Device

A Custom Embedded Healthcare Monitoring Solution by Devoforge

01. Devoforge Expertise

At Devoforge, we specialize in delivering end-to-end Product Design and Development, Custom Electronics Project Development, and Embedded Systems Development solutions tailored to real-world client challenges. Our expertise spans hardware engineering, firmware development, 3D product enclosure design, rapid prototyping, and production-ready optimization.

In this project, we partnered with a client in the healthcare sector to design and develop a CPAP Mask Pressure Monitoring and Alert Device. The objective was to create a reliable, compact, and intelligent monitoring system that ensures accurate mask pressure tracking and provides real-time alerts to improve patient safety and therapy effectiveness.

This project reflects our capability to transform a concept into a fully functional, production-ready embedded device — covering everything from electronics design and firmware programming to enclosure engineering and testing validation.

02. Client Requirements

The client approached Devoforge with a clear need:

They required a compact monitoring device that could:

  1. Continuously measure CPAP mask air pressure
  2. Detect pressure drops or abnormal values
  3. Provide immediate alerts in case of leaks or system malfunction
  4. Operate reliably in a medical-use environment
  5. Be compact and aesthetically suitable for bedside placement
  6. Run on stable and efficient power
  7. Include a user-friendly interface

Additionally, the device needed to:

  1. Be cost-effective for small-scale production
  2. Be robust enough for long-term usage
  3. Have an enclosed casing that protects electronics
  4. Be designed with future upgrade capability

The client also emphasized accuracy, low noise operation, and reliable alert mechanisms to ensure patient safety.

03. Proposed Solution

After requirement analysis and technical feasibility study, our engineering team proposed a custom embedded system built around a microcontroller-based architecture.

Our proposed solution included:

  1. A high-precision differential pressure sensor for real-time monitoring
  2. Microcontroller-based signal processing and logic handling
  3. Alert system including buzzer and visual indicators
  4. Compact 3D-printed enclosure
  5. Optimized PCB layout for stable and noise-free operation
  6. Calibrated firmware for accurate pressure interpretation

We also recommended a modular design so future upgrades (such as wireless connectivity or mobile app integration) could be implemented without major hardware redesign.

The goal was to create a reliable, user-friendly, and production-ready device.

04. Implemented Solution

The final implemented solution consisted of the following key components:

  1. Embedded microcontroller unit
  2. Precision air pressure sensor
  3. Visual LED indicators
  4. Buzzer alert mechanism
  5. Power regulation circuitry
  6. Custom-designed PCB
  7. 3D-printed enclosure

The system continuously reads pressure data from the CPAP mask line. The firmware processes the sensor data, compares it against calibrated thresholds, and triggers alerts if pressure falls below or exceeds safe levels.

The device provides:

  1. Real-time pressure monitoring
  2. Leak detection alerts
  3. Audible alarm for immediate notification
  4. Stable operation under continuous use

The final system was compact, responsive, and highly reliable — meeting all client expectations.

05. Our Process

At Devoforge, we follow a structured development methodology:

Step 1
Requirement Analysis

We discussed medical safety considerations, environmental factors, and user interaction requirements with the client.

Step 2
System Architecture Design

We created block diagrams and defined hardware architecture including sensor selection and microcontroller compatibility.

Step 3
Circuit Design & Simulation

The electronics were designed and tested using simulation tools before physical prototyping.

Step 4
Firmware Development

Custom embedded code was written for:

  • Sensor reading
  • Calibration algorithms
  • Alert logic
  • Power optimization
Step 5
Prototyping

Initial PCB prototypes were fabricated and assembled for testing.

Step 6
Mechanical Design

Custom 3D enclosure designed for:

  • Proper airflow routing
  • Component protection
  • Easy assembly
  • Professional aesthetics
Step 6
Testing & Calibration

Multiple pressure scenarios were tested to validate accuracy and responsiveness.

Both versions underwent extensive real-world validation.

This iterative process ensured that performance improvements were validated under actual racing conditions in the UAE.

06. 3D Enclosure Design

The enclosure design was a critical part of the project. The device needed to be:

  1. Compact
  2. Durable
  3. Ventilated properly
  4. Safe for bedside usage
  5. Professional in appearance

Our design team created a custom enclosure using CAD software. Special care was taken to:

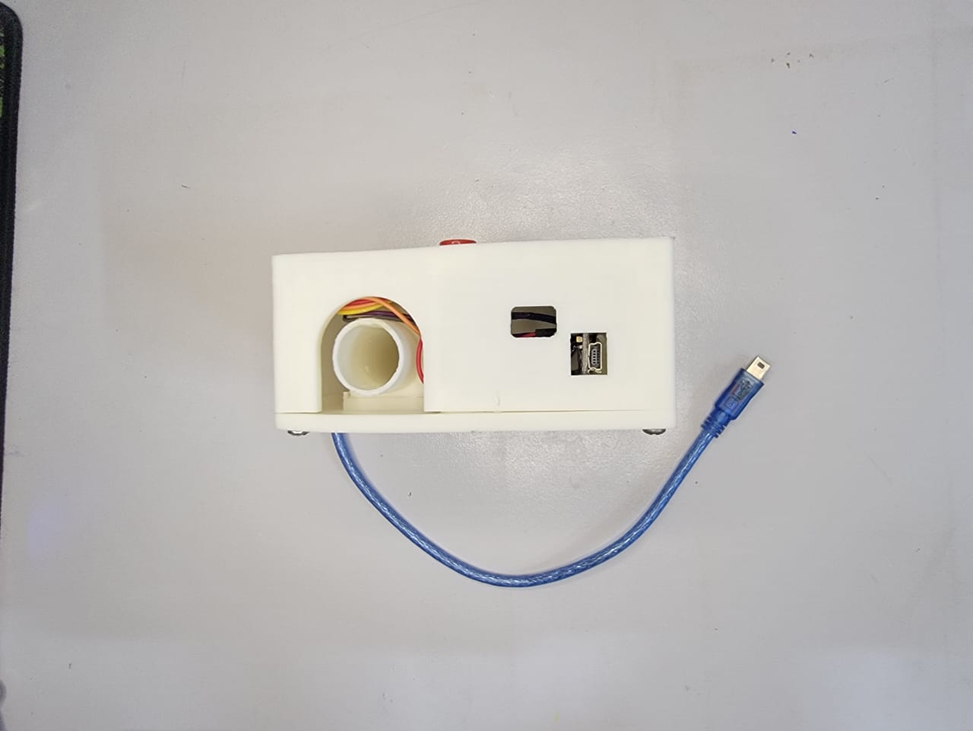

  1. Properly route pressure tubing
  2. Provide stable mounting for PCB
  3. Ensure easy access for maintenance
  4. Prevent dust intrusion
  5. Maintain airflow balance

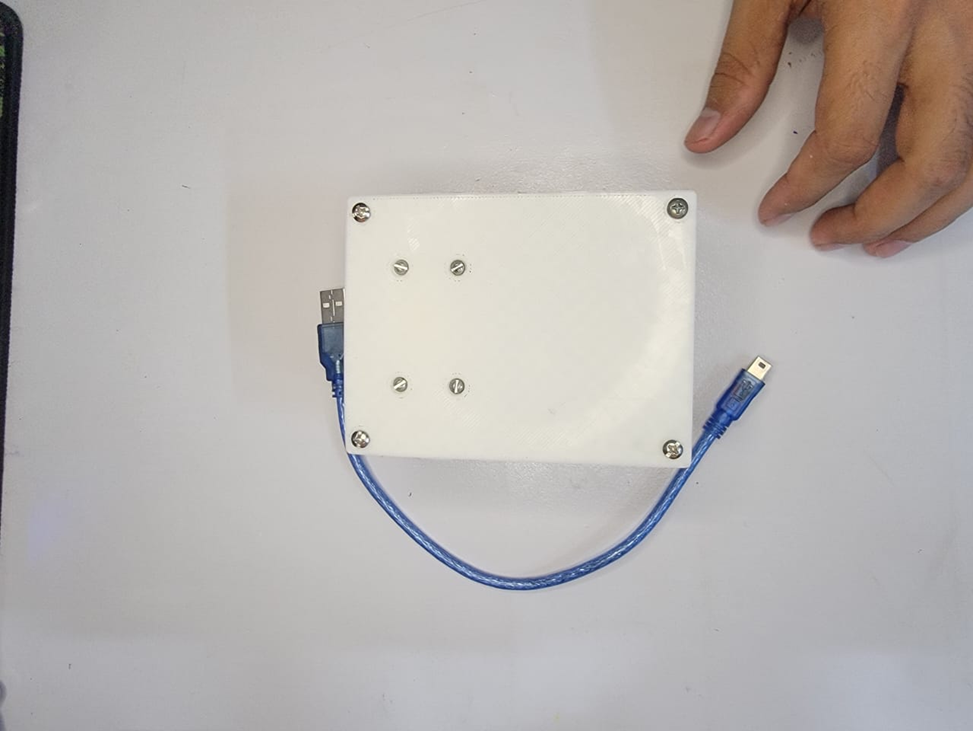

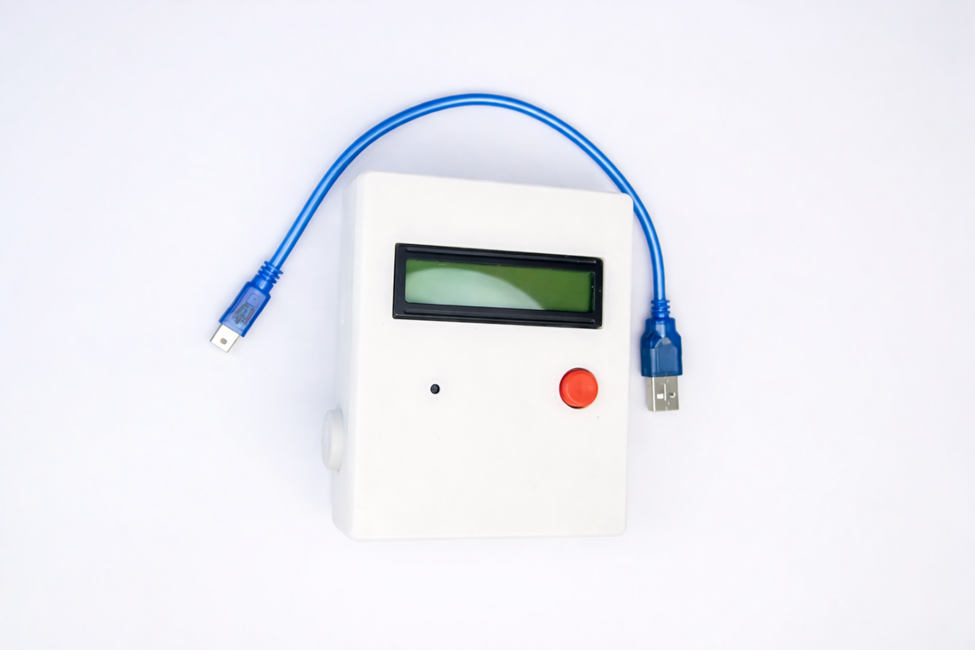

The enclosure was manufactured using high-quality 3D printing material and post-processed for smooth finishing.

The final casing provided both protection and aesthetic appeal.

07. Circuit Design

The electronics design focused heavily on accuracy, signal stability, and power efficiency.

Key highlights:

  1. Clean power regulation stage
  2. Noise filtering for sensor signals
  3. Proper grounding strategy
  4. Protection components for reliability
  5. Optimized PCB trace layout

The pressure sensor output was filtered and fed into the microcontroller’s ADC. The firmware then processed the signal using calibrated scaling factors.

We ensured:

  1. Minimal signal noise
  2. Stable voltage levels
  3. Low current consumption
  4. Thermal reliability

This careful electronic engineering allowed the device to operate continuously without performance drift.

08. Challenges

During development, several technical challenges arose:

Pressure Calibration

Medical devices require high accuracy. Fine-tuning calibration required multiple iterations.

Noise Interference

Sensor readings were initially affected by electrical noise. This was resolved through filtering and improved PCB layout.

Compact Component Placement

Space constraints required optimized PCB routing and mechanical adjustments.

Alert Sensitivity Optimization

Finding the right balance between false alarms and real fault detection required firmware refinement.

Each challenge was resolved through engineering analysis, testing, and redesign iterations

09. Revisions

Based on client feedback and internal testing, the following revisions were made:

  1. Improved alert sound intensity
  2. Refined LED indicator visibility
  3. Adjusted pressure threshold calibration
  4. Reinforced enclosure structure
  5. Optimized power regulation circuit

Each revision enhanced performance, usability, and reliability.

We believe iteration is key to delivering production-ready embedded systems.

10. Final Version (Result)

The final device delivered to the client achieved:

  1. Accurate real-time pressure monitoring
  2. Reliable leak detection alerts
  3. Stable continuous operation
  4. Compact and professional design
  5. Production-ready electronics layout

The client successfully integrated the device into their CPAP system workflow.

This project demonstrated Devoforge’s strength in:

  1. Custom Healthcare Device Development
  2. Embedded Systems Engineering
  3. Electronics Prototyping
  4. Product Design & Manufacturing Support

The solution was robust, scalable, and future-ready.

11. Future Upgrades

The system architecture was designed to support future enhancements such as:

  1. WiFi or Bluetooth connectivity
  2. Mobile application integration
  3. Data logging capabilities
  4. Cloud monitoring dashboard
  5. LCD display for real-time pressure reading
  6. Rechargeable battery integration

Because of the modular embedded system design, these upgrades can be implemented without redesigning the entire hardware.
