Smart Parcel Scale System for
Secure Amazon Deliveries

IoT Security · Smart Home · Product Development · Embedded Systems
Developed by Devoforge – Product Design & Embedded Engineering Studio

01. Devoforge Expertise

At Devoforge, we specialize in transforming complex real-world challenges into intelligent, scalable, and commercially viable embedded systems. Our expertise spans:

  1. IoT Product Development
  2. Embedded Systems Engineering
  3. Smart Home Security Solutions
  4. Wireless Connectivity Integration
  5. Precision Sensor-Based Systems
  6. Custom Hardware & Firmware Development
  7. Outdoor-Ready Industrial Design

The Smart Parcel Scale System is a strong example of our multidisciplinary approach — combining hardware innovation, IoT connectivity, intelligent sensing, and real-world usability to create an active parcel protection platform.

Rather than designing a passive monitoring system like traditional CCTV, we engineered an intelligent weight-verification and locking mechanism capable of actively preventing package theft

02. Client Requirements

With the rapid rise of e-commerce, porch piracy has become a serious issue in urban and suburban regions, particularly in Western countries

9 Smart Scale Case Study

Traditional surveillance solutions provide alerts after theft occurs but do not physically prevent it.

The client required a solution that could:

  1. Confirm genuine parcel delivery
  2. Prevent unauthorized removal
  3. Reduce false alerts caused by animals or environmental disturbances
  4. Integrate with smart home ecosystems
  5. Operate reliably in outdoor conditions
  6. Provide real-time notifications
  7. Verify parcel authenticity based on weight

Additionally, the system had to differentiate between real theft attempts and interference from animals such as squirrels, raccoons, or pets.

03. Proposed Solution

Devoforge proposed a Smart IoT Weight-Based Parcel Protection System built around an ESP32 microcontroller and precision load sensing technology

The concept:
A smart scale platform placed at the entrance of a home where parcels are delivered. The system would:

  1. Detect parcel placement.
  2. Compare actual weight with expected delivery weight.
  3. Lock the parcel after successful verification.
  4. Monitor micro-weight changes continuously.
  5. Trigger alarms and notifications upon unauthorized removal.

This design transforms a passive delivery location into an active security zone.

04. Implemented Solution

The final product is a modular embedded IoT system integrating weight sensing, intelligent verification, locking mechanisms, and wireless communication.

Core System Components:

  1. ESP32 Microcontroller (Wi-Fi + Bluetooth enabled)
  2. High-precision Load Cell
  3. HX711 24-bit ADC amplifier
  4. Electronically controlled locking latch
  5. Buzzer and LED alert indicators
  6. DC power input with battery backup capability

The ESP32 provides dual-core processing, connectivity, and low-power operation, making it ideal for IoT deployment. The load cell combined with the HX711 ensures accurate weight measurement and micro-variation detection

05. Our Process

At Devoforge, we follow a structured product development lifecycle:

Step 1
Problem Analysis

Studied porch piracy trends and identified limitations of CCTV-based solutions.

Step 2
Concept Engineering

Designed a weight-based verification and locking strategy

Step 3
Hardware Selection

Chose high-precision sensors and a Wi-Fi-enabled microcontroller for real-time connectivity.

Step 4
Firmware Architecture Design

Implemented a state-machine-based firmware model for reliability.

Step 5
Prototyping

Developed hardware platform and enclosure for outdoor simulation.

Step 6
Testing & Validation

Conducted security, environmental, and false-trigger tests.

06. 3D Enclosure Design

The product was designed specifically for outdoor residential deployment.

Design Priorities:

  1. Weather-resistant housing
  2. Stable platform base
  3. Anti-slip feet
  4. Tamper-resistant construction
  5. Secure internal electronics placement

The enclosure ensures durability under:

  1. Rain and humidity exposure
  2. Temperature variations
  3. Long idle durations
  4. Wind disturbance

The enclosure also supports maintenance access and modular hardware upgrades.

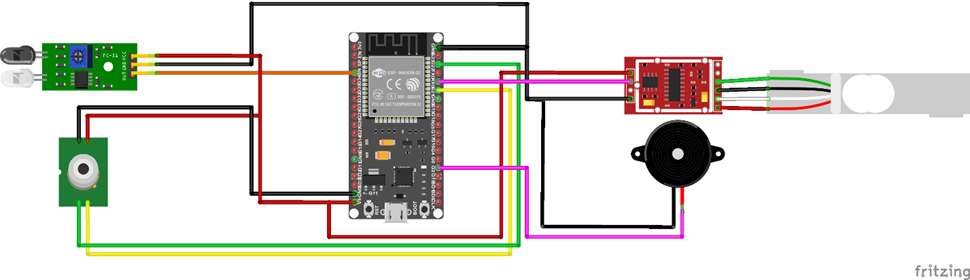

07. Circuit Design

The circuit was engineered for stability, precision, and low-noise measurement.

Key Circuit Modules:

Module 1
ESP32 Development Module
  • Dual-core processing
  • Wi-Fi & Bluetooth communication
  • Low-power modes
Module 2
HX711 Amplifier
  • 24-bit ADC for precision load cell measurement
  • Noise filtering capability
Module 3
Load Cell Interface
  • High-accuracy weight detection
  • Drift correction support
Module 4
Lock Driver Circuitry
  • Controlled latch activation
  • Safe actuation control
Module 5
Buzzer & LED Control Stage
  • Immediate audible and visual alerts
Module 6
Voltage Regulation Section
  • Stable power supply distribution
  • Battery backup compatibility

08. Challenges

  • During development, several engineering challenges were addressed:
  • Accurate Weight Verification
  • Ensuring reliable weight comparison within tolerance limits (±5%) without drift errors.
  • False Trigger Prevention
  • Preventing alarms from:
  1. Pets
  2. Squirrels
  3. Wind vibrations
  4. Partial parcel shifting
  • Outdoor Durability
  • Ensuring performance under temperature fluctuations and moisture exposure.
  • Micro-Weight Monitoring
  • Detecting small gradual lifting attempts without false positives.
  • Power Stability
  • Ensuring consistent performance during Wi-Fi communication and locking actuation.
  • Each challenge required iterative testing and calibration.

09. Revisions

Multiple refinement cycles improved system reliability:

  1. Calibrated load cell measurement range
  2. Optimized firmware state transitions
  3. Enhanced anomaly detection logic
  4. Improved enclosure sealing
  5. Reinforced lock actuator mounting
  6. Adjusted minimum detection thresholds

We also enhanced intelligent behavior analysis by integrating IR-based detection using MLX90614 to detect the presence of living organisms via IR radiation.

This allows the system to:

  1. Ignore animals climbing briefly
  2. Ignore minor disturbances
  3. Detect only genuine lifting actions

These revisions significantly reduced false alarms — a major limitation in traditional smart security systems

10. Final Version (Result)

The final Smart Parcel Scale System delivers:

  1. Verified parcel authentication
  2. Automated parcel locking
  3. Real-time theft detection
  4. Audible local alarm
  5. Mobile notifications via Wi-Fi
  6. Event logging with timestamps
  7. Intelligent false-alarm prevention

User experience flow:

  1. User orders product online.
  2. Expected weight is entered or auto-fetched.
  3. Delivery person places parcel on scale.
  4. System verifies authenticity.
  5. Parcel automatically locks.
  6. User receives “Delivery Secured” notification.
  7. Any unauthorized lifting triggers alarm and alert.

This seamless automation creates a highly secure, intelligent delivery environment.

11. Future Upgrades

The platform was intentionally designed for scalability.
Planned and potential enhancements include:

Amazon API Integration

  1. Automatic delivery weight fetching
  2. Courier synchronization

AI-Based Theft Detection

  1. Pattern recognition of lifting behavior
  2. Predictive theft alerts

Smart Camera Integration

  1. Auto-capture on alarm
  2. Cloud image storage

Multi-Parcel Support

  1. Stack tracking
  2. Individual parcel ID logging

Mobile App Dashboard

  1. Delivery history
  2. Alarm logs
  3. Remote unlock feature

Smart Home Ecosystem Integration

  1. Alexa & Google Home support
  2. Smart lighting triggers
  3. Integration with smart door locks



These upgrades could elevate the system into a commercial smart-home security platform.
